Lithothermal Resources Ltd are equipped to provide expertise and partnership from project conception to completion
From project start up to exploratory borehole drilling we have it covered
Geophysics for critical minerals
From survey planning, acquisition (with established partners), data processing and interpretation we can provide all services for all exploration phases in-house through to the design of wells

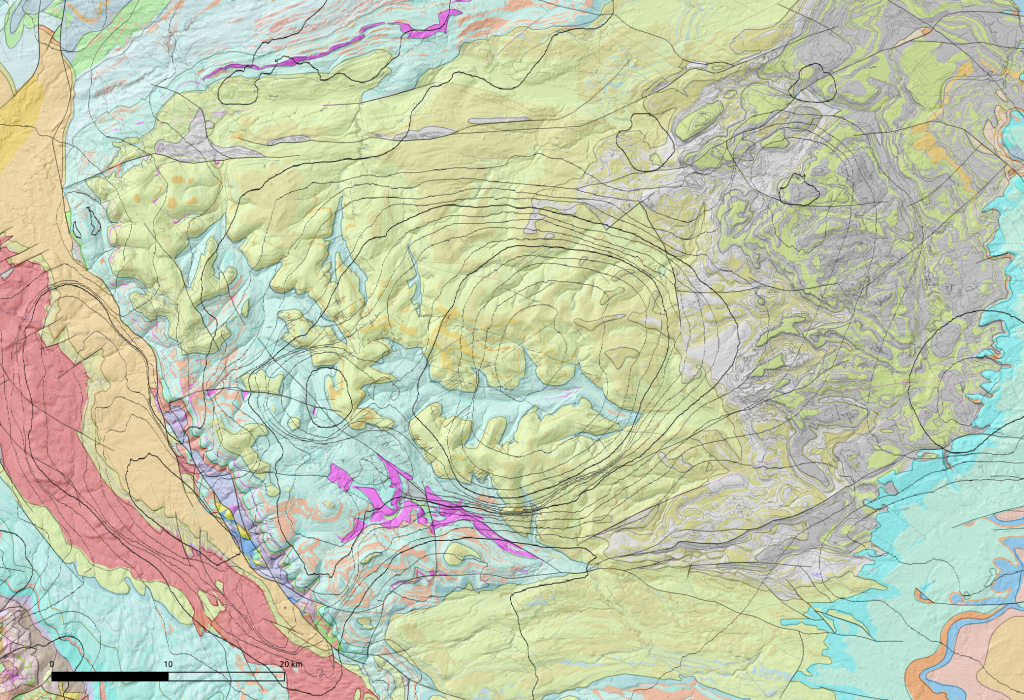

Geology and Geophysics GIS Databases
Bespoke comprehensive industry standard GIS databases built using all existing and new geological and geophysical data
Field Mapping and Reports
With vast experience in UK regional and local geology look no further than ‘boots on the ground’ to supplement existing knowledge with structural geology, geophysics and geochemistry

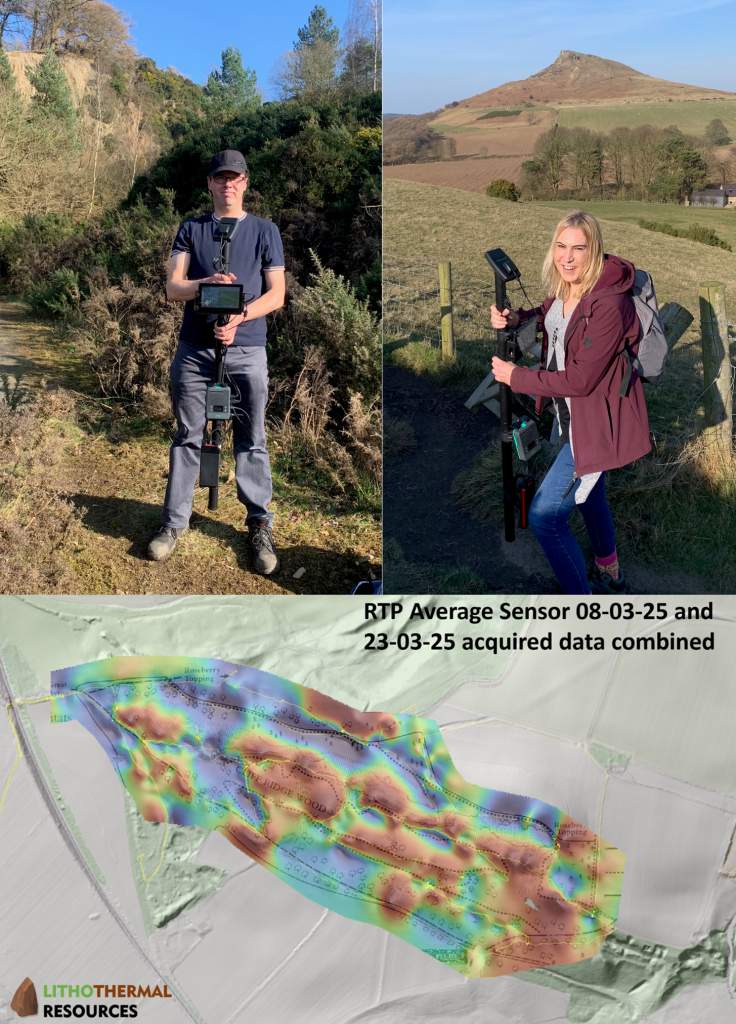

HGLR1 Fluxgate Magnetometer Gradiometer
Designed for field based applications where challenging near-surface topography restricts the use of flown magnetometry systems by drone or light aircraft, the HGLR1 developed in-house by Lithothermal Resources is a low-cost and fully interactive game-changer. It uses two FG-3+ fluxgate sensors with a low noise floor and sub +/- 0.2 nanoteslas sensitivity. A Raspberry Pi acts as the data logger from an analogue-to-digital converter, also hosting the bespoke software for real-time analysis, sensor calibration, GPS and GIS (for planning and walking routes) which are all integrated using a 7-inch touch screen display. The data can be processed quickly with in-house software to edit tracks, thresholds and filtering immediately after acquisition. The system is weatherproof, lightweight (under 5 kg) and has an internal lithium battery allowing for five hours of continuous field measurements that can be supplemented by a power pack providing an additional ten hours recording. Successful field trials makes it ideal to map out features of limited width (sub 5 metres), such as mineralised veins, igneous dykes and alteration zones at very high resolution.
Please get in touch for more information antonia@lithothermalresources.co.uk
